Thursday, February 23, 2017

Avanti Inc 3: Alfine 11 Di2 Drop Bar Conversion Part 3

Finally, Part 3 of this project to upgrade the Avanti Inc 3 to Alfine 11 Di2 and road hydraulic disc brakes. In Part 1 and Part 2 of this blog post, all the new components were shown and prepared for installation. Now, all the components can be installed onto the bike.

Let's take a look at the new drivetrain first. New Alfine 11 Di2 hub with motor unit, with new rear 28T Gates sprocket and new 115T Gates CenterTrack belt.

Before: 113T red colour belt, with Chain Guard on the mechanical Alfine 11 hub

After: New Alfine 11 Di2 hub, with Chain Guard removed. The belt and Motor Unit are able to fit within the limited space with the use of the special 28T sprocket.

MU-S705 Motor Unit installed to activate the electronic shifting. Di2 wire connects to the port at the bottom.

Di2 wire runs discreetly behind the right side chain stay to Junction B

Using the Di2 wire tape to position the wire neatly

Using long chain ring bolts and spacers to adjust the position of the front chain ring, in order to get a straight chain line.

A straight chain line is necessary to prevent noise and premature wear of the belt

Drivetrain installed! Front 42T and rear 28T.

New gear ratios of this Alfine 11 setup. Due to the larger 28T sprocket (previously 24T), the whole gear range has been lowered.

With the drivetrain installed, the focus now moves to the braking system. Compared to the braking system, the drivetrain set up is easy. The reason is that the brake system needs to be assembled from scratch, as the brake caliper and brake levers are not pre-assembled and pre-bled at the factory like most flat handlebar hydraulic brakes.

Bleeding the hydraulic disc brakes is new to me as I have not worked on hydraulic brakes before. However, with the help of the ST-R785 Dealer's Manual and some help from friends, I managed to bleed the brakes properly. Prior to this bike, I also practised bleeding the hydraulic brakes on another bike. A good hydraulic disc brake bleeding kit is also necessary. The process is rather tedious the first time round, but once you get the hang of it, it gets easier.

Dealer's Manual for ST-R785

Left side of ST-R785. Only used as a brake lever with no shifting function on this bike.

Right side of ST-R785. The two shifting switches are used to shift up and down the 11 gears.

Mounted on the compact road drop bar. The hood is taller than normal road shifters, but not an issue.

80mm stem mounted

Alfine digital display SC-S705 mounted as neatly as possible.

Accessories mounted on the handlebar. Limited space due to the narrower drop bar compared to a normal flat handlebar.

New bar tape! Trying out this silicone bar tape for the first time. No adhesive means it can be reused many times, while it is also water resistant and non-slip for wet weather usage.

Nice grippy, rubbery texture, quite comfortable too.

New handlebar setup, with road hydraulic shifters.

Di2 wire between the digital display (Junction A) and Junction B is routed neatly along the rear brake hose. Shown behind is the DIY steering stabilizer.

Battery mounted on the downtube, below the bottle cage. Junction B is fixed behind the seat tube with strong mounting tape + cable tie. Tried and tested on the Dahon MuEX and Wheelsport mini velo.

Front hydraulic disc brake caliper, comes with Ice-Tech brake pads.

Not as sleek looking as the new Flat Mount standard, but works just as well.

Rear hydraulic disc brake caliper

Picture showing the new drivetrain. Clean appearance and maintenance free.

Full view of the bike. Converted from flat handlebar to drop bar setup.

An all-weather drop bar commuting bike, which is coincidentally also a great touring bike.

This project has finally been completed, and it was not an easy project. Although I had experience with setting up the Di2 system and the Gates belt drive system, installing the hydraulic disc brakes were new to me. There were no major issues or difficulties with this modification, just that it is tedious due to the many components that were changed.

At this point, the speedometer reads 2700 km, which is the distance traveled on the previous mechanical Alfine 11 hub. In about 1000km, it will be time to service the new Alfine 11 Di2 hub by changing out the oil inside the hub.

Saturday, February 11, 2017

Avanti Inc 3: Alfine 11 Di2 Drop Bar Conversion Part 2

Continuing from Part 1 of this project, which is to convert the Avanti Inc 3 to a drop bar bike with Alfine 11 Di2, here are the rest of the components that are required.

The drivetrain system has been settled, with the new Alfine 11 Di2 hub and rear wheel, new 28T Gates rear sprocket and also the 115T Gates CenterTrack belt.

The other components that are required are the shifters, brakes and motor unit to activate the shifting inside the rear internal hub. As I want to have a drop bar bike with hydraulic disc brakes, the only shifter that is currently compatible with Alfine 11 is the non-series ST-R785 shifter. This is a road Di2 shifter that is integrated with a hydraulic brake lever. For more pictures and details, check out this earlier post where I studied the ST-R785 shifter in more detail.

ST-R785 Di2 road shifter integrated with hydraulic brake lever. Rather heavyweight due to the full aluminium bracket. For comparison, the new Dura-Ace ST-R9170 weighs only 316 grams/pair.

As the entire brake system will be changed, from the current Deore M615 hydraulic brake lever and brake calipers, there is a need to get new brake calipers and set up the whole brake system from scratch. This means installing the brake hose and bleeding the whole brake system.

This BR-RS785 brake caliper is the recommended brake caliper to go with the ST-R785 shifters

Low profile road hydraulic disc brake caliper, using the traditional Post Mount system, not the new Flat Mount standard

No banjo fitting for this brake caliper for a low profile look.

With the brake system components settled, next is the electronic components. As I am converting the bike from mechanical shifting to electronic shifting, I will need to get some electronic components. I have set up a few Di2 bikes previously, so this is quite straightforward for me.
Dahon Boardwalk Ultegra Di2
Dahon MuEX Ultegra/XTR Di2
Wheelsport Fantasy Ultegra Di2
Merida Scultura 5000 Ultegra Di2

New battery mount is required. A long battery mount is used and will be fixed to the bike using the water bottle cage mounts.

MU-S705 Motor Unit, will be fixed to the Alfine 11 Di2 hub to activate the shifting inside the hub. The yellow ring is the seal.

The splines that will engage with the Drive Plate on the hub. This unit has been pre-programmed to work with 11 speed Alfine Di2.

After installing the yellow ring to create a watertight seal around the Drive Plate area

Weighs 140 grams for this Motor Unit. Di2 wire will plug into the hole as shown at the bottom.

Wiring up all the Di2 components to test out, before installing onto the bike. The digital display, SC-S705 is from the Dahon Boardwalk a few years ago.

Wiring diagram for this Alfine 11 Di2 setup. Quite simple as there are fewer components than the road Di2 setup.

Everything worked fine even before any firmware updates. The plan is to share 2 external Di2 batteries across the 3 Di2 bikes that I currently have. The Merida Scultura 5000, Dahon MuEX, and this Avanti Inc 3.

The system is then connected to the Di2 SM-PCE1 box to update the firmware and also customize the settings.

Updating the firmware for all the Di2 components

It is possible to re-program the Motor Unit to work with either the 8 speed or 11 speed Alfine Di2 system

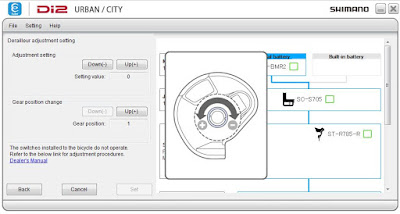

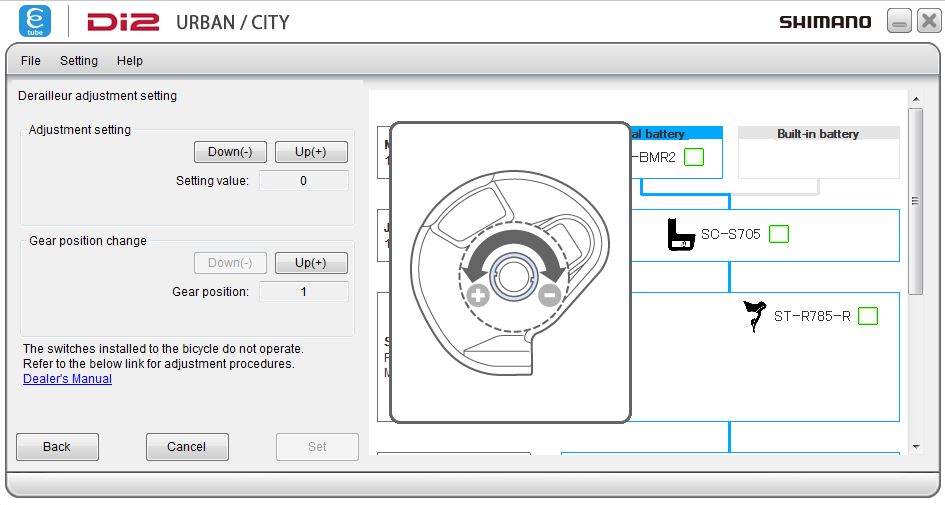

There is a fine-tuning function for adjusting the Motor Unit, in case there is some problem with the shifting. Otherwise, the factory setting will be fine.

A new drop bar is required to convert this bike from flat handlebar to drop bar. As weight is not the main concern, while durability and all-weather ability is more important, I opted for an economical FSA aluminium drop bar, in my preferred compact shape.

FSA drop bar (42cm width) that is wider than usual (40cm), in order for better control during wet weather. Same concept as on cyclocross bikes.

Flat top that may be more comfortable for holding

Over 300 grams for this handlebar, which is 50% heavier than the lightweight FSA K-Force carbon drop bar that I am using on the Merida Scultura 5000 and Wheelsport Fantasy Mini Velo.

One downside to using this Avanti Inc 3 frame and modifying it to a road bike style is that the top tube length of the Avanti Inc 3 bike is quite long. In fact, it is about 25mm longer than the Merida Scultura 5000.

Therefore, I decided to compensate for the longer top tube by using a shorter stem.

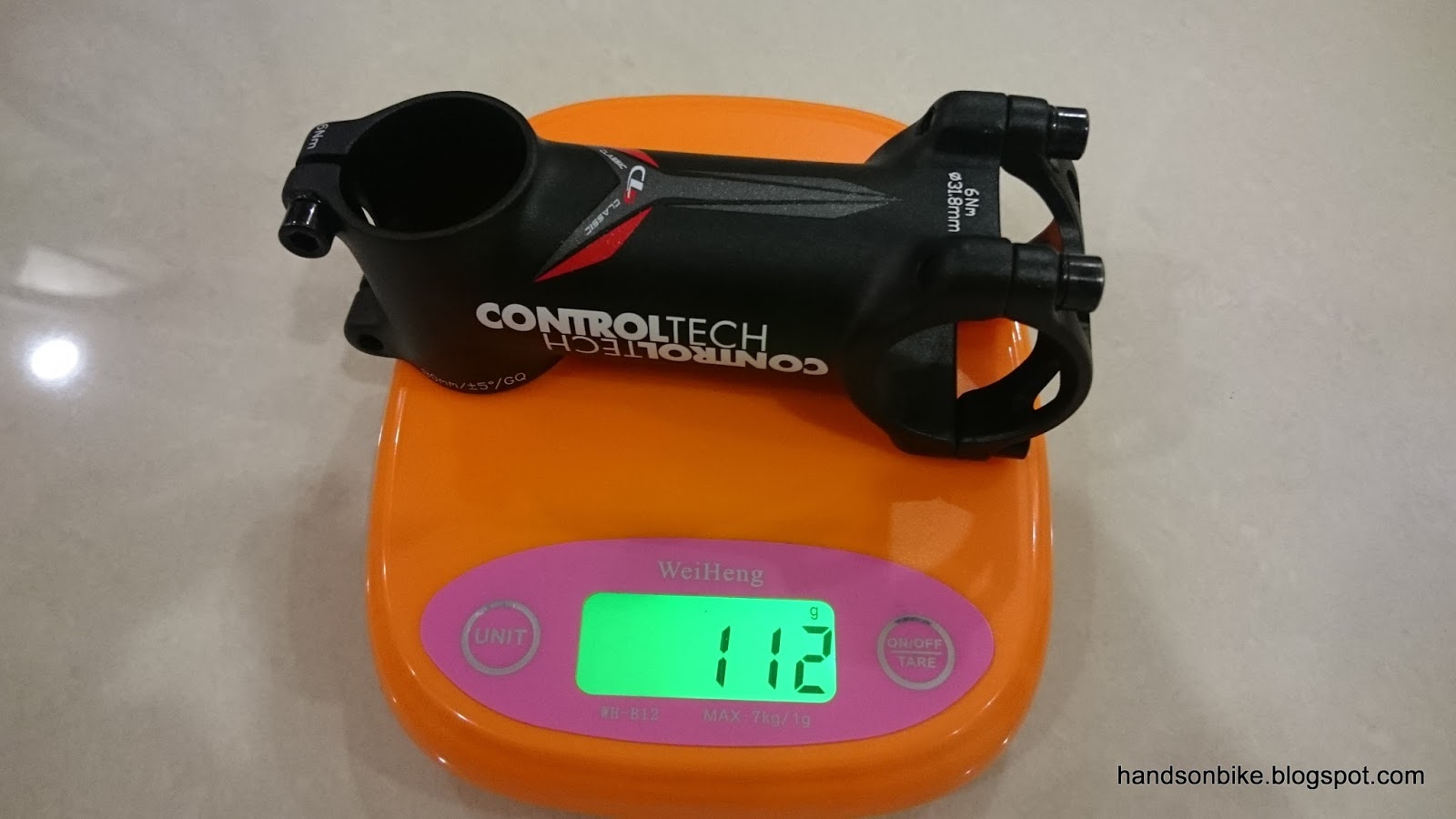

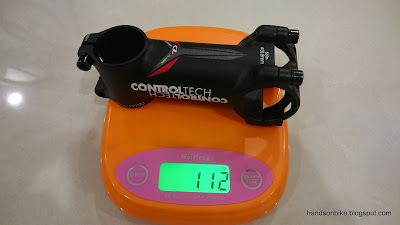

80mm Controltech stem

Looks very similar to the stock stem on the Merida Scultura 5000

Lightweight at only 112 grams

As a preview for Part 3, where the installation of all the new components will take place, here is a wheel weight comparison.

Weight of stock Alfine 11 (mechanical) rear wheel, without sprocket or disc rotor

Weight of new Alfine 11 Di2 rear wheel. Lighter by about 250 grams, mainly from the rim and spokes.

In the third part of this project, all the components will be installed onto the bike. Stay tuned for the updates and the pictures!

Part 3 here

Thursday, February 2, 2017

Avanti Inc 3: Alfine 11 Di2 Drop Bar Conversion Part 1

It has been a few months since I did an upgrade on the Avanti Inc 3 all-weather commuting bike, and more than a year since any major component upgrade. The recent trend in road bike is disc brake road bikes, where the superior hydraulic disc brakes replaces the traditional caliper brakes.

I had considered changing my Merida Scultura 5000 road bike for a road hydraulic disc brake road bike, but the time is not right yet. The technology for new road hydraulic disc components are only just beginning to mature, so it is a bit too early to change to a road hydraulic disc bike that is future proof. By future proof I am referring to the road hydraulic disc specifications that are becoming the standards, such as Flat Mount disc brake caliper mounting, 12mm front and rear E-Thru Axles and 140/160mm disc brake rotors.

Flat Mount brake caliper mounting, 12mm front and rear E-Thru Axles, 160mm disc brake rotors. However, the shifters are still not the Dura-Ace R9170 version which are more compact.

There are a couple of road hydraulic disc components that are currently available during this transition period, such as the mechanical shifter ST-RS685 and the electronic Di2 shifter ST-R785. Note that these are the first generation road hydraulic disc components, and thus they are not as refined as they can be.

A glimpse of the 2nd generation components can be found in the new Dura-Ace R9170 road hydraulic disc groupset, where the shifter is similar in size, no matter mechanical or electronic shifting, no matter mechanical or hydraulic braking. Those are not available just yet, although it will be available later this year.

4 different types of Dura-Ace shifters.
From left to right: Di2 + Hydraulic Brake, Di2 + Mech Brake, Mech Shifting and + Mech Brake, Mech Shifting + Hydraulic Brake.

A normal road bike frame cannot be converted to use disc brakes, as the frame and fork will need disc brake mounts, and the wheel hubs will need to have disc rotors fitted. Incidentally, this is what the Avanti Inc 3 already has...

This gave me an idea, which is a pretty wild idea. Converting the Avanti Inc 3 from a flat handlebar bike to a drop bar bike that is somewhat similar to a road hydraulic disc road bike. It is possible, but it does take quite a bit of effort and modification, so let's see what we need.

The current Avanti Inc 3 setup is an Alfine 11 rear internal hub with a mechanical shifter on a flat handlebar. Changing to a drop bar will require changing to a shifter that can operate an Alfine 11 rear hub. There is no mechanical drop bar shifter that is compatible with the Alfine 11 rear hub, unless we go for electronic Di2.

*There is a third-party drop bar mechanical shifter for Alfine 11, and it looks very much like a Microshift road shifter. However, it is not using hydraulic brakes, so I did not consider it.

Therefore, to continue using Alfine 11 with a drop bar setup, I will need to change to the electronic version of the Alfine 11 rear hub, and control it using the the ST-R785 Di2 road shifter with hydraulic disc brakes.

While doing some research on the Internet, I found only one bike that is similar in specifications to my proposed setup. Alfine 11 Di2 hub with road hydraulic disc brakes and belt drive. This would be a great all-weather commuting bike that rides like an endurance road bike.

This is a major change that will affect many components on my Avanti Inc 3, so I needed to think it through properly. As far as I can see, there is no downside to this change, as I still get the all-weather features of the disc brakes, internal hub and belt drive, while getting to use a drop bar setup for more speed and better ergonomics. This also satisfies my urge to have a road hydraulic disc brake bike.

Current setup, with flat handlebar and Alfine 11 with mechanical shifting.

The Alfine 11 hub for the electronic Di2 version is slightly different from the mechanical version, as the Di2 version does not have a return spring, since both up and down shifting is controlled and driven by the external motor unit. As such, a new Alfine 11 Di2 hub is required.

The first challenge is to find a rear wheel with Alfine 11 Di2 internal hub, SG-S705. Although it is possible to buy the rim, spokes and hub and build it myself, I am not confident in my wheelbuilding skills. Therefore, I ordered a custom wheelset from Universal Cycles, where they will build the rear wheel with the Alfine 11 Di2 hub, and my choice of rim and spokes.

Alfine 11 Di2 rear wheel with DT Swiss rim and spokes. Looks somewhat similar to the DT Swiss Front Wheel which I changed some time ago.

Shot-blasted rim surface, with bladed DT Swiss spokes and special spoke nipples

This was the only rim I could find that looked most similar to the front wheel

Comparing the rim profile of the front wheel (left, 24mm) with the rim profile of the new rear wheel (right, 33mm)

The rim comes with its own special spoke nipples that should be used

The Alfine 11 Di2 hub has been built into the rear wheel, and it also has its own accessories as shown below. The rotor spacer is necessary when mounting the disc brake rotor onto this hub. For more details, refer to this earlier post when I changed the disc rotor. The rotor mount is used to cover the Centerlock splines if disc brakes are not used.

From left to right: Chain Guard (optional), Rotor Mount Cover, Rotor Spacer

The next challenge is to find a suitable Gates rear sprocket. Although the hub uses a standard 3 spline mounting for the sprocket, the problem is the clearance. As the Alfine 11 Di2 hub requires a motor unit (MU-S705) mounted externally to activate the shifting inside the hub, there is limited clearance for the sprocket.

As found on the Gates website, after mounting the motor unit onto the hub, there is only just enough space for the belt drive sprocket, which is wider than the standard chain sprocket. The Chain Guard as shown above will also need to be removed, while the chain line is also affected.

A special sprocket for the Alfine Di2 hub needs to be used in order to be able to fit the Gates belt drive

Alfine Di2 Gates sprocket, with extra offset to prevent interference with the motor unit. Only comes in one size of 28T.

This 28T Di2 sprocket weighs 104 grams. Also note the special SureFit design that allows flexing of the sprocket arms for more secure engagement.

The original 24T sprocket does not have the SureFit design of the newer sprockets.

The hub comes with a plastic clip to stop the Right Hand Dust Cap D (silver colour) from dropping off as it is not fixed to anything. The sprocket will press onto this dust cap after installation.

Fixing the new 28T sprocket onto the new Alfine 11 Di2 hub

The 3 arms on the sprocket will flex and press against the Driver of the hub, preventing creaking sounds caused by a loose sprocket

Apart from the limited clearance on the hub for the sprocket and the motor unit, the clearance at the front chain ring also has to be checked. Due to the chain line moving inwards by about 4mm compared to the standard mechanical Alfine 11 hub, the front chain ring also needs to be moved inwards by approximately the same amount to ensure a straight chain line.

It is necessary to have sufficient clearance between the front chain ring and the right side chain stay to prevent interference. As explained by the diagram created by Gates below, there needs to be at least 2mm of clearance between the frame and the chain ring to be safe. There will usually be more clearance if a smaller chain ring is used.

Minimum clearances required to install Alfine 11 Di2 onto the bike

Earlier on, I had checked and found that the current clearance between the right side chain stay and 42T chain ring is about 7mm

After moving the chain line inwards by 4mm, there should still be about 3mm of clearance, so it should be OK. This is based on calculations.

As the rear sprocket has been increased in size, the belt length will need to be increased as the front chain ring and chain stay length remains the same. The Gates belt thus has to be changed from the special edition red coloured 113T belt to a longer 115T length. Since I already had a 115T belt lying around from a previous project, I did not have to buy a new belt.

First generation of CenterTrack belt, with a smooth back instead of a ribbed surface

Weighs 75 grams for the 115T belt. Much lighter than a conventional metal chain.

A miscellaneous upgrade is the saddle, where the stock saddle was getting worn out and the saddle rails were getting rusty. I came across this Selle Italia saddle which looks pretty decent and is also inexpensive. Also, it has a synthetic leather covering which is waterproof and therefore ideal for this bike that needs to withstand rain as well.

Made in Romania! Made of FeC alloy which basically just means steel.

Simple glued construction, no staples are used.

An average weight of 270 grams for this saddle. Even has a cutout for pressure relief.

Installed in just 5 minutes, before the rest of the components

This new saddle works well and is quite comfortable. Considering the good price that I paid for it, there are no complaints about this saddle.

Back to the Alfine 11 Di2 upgrade. In this blog post, I have shown the new rear wheel with Alfine 11 Di2 hub, the new 28T rear sprocket and the 115T belt. The other components will be shown in the next few blog posts!

Part 2 here
