Cervelo Aspero: BBright Bottom Bracket by Wheels MFG

On the Cervelo Aspero, the bottom bracket specification is a unique one, as it is not found on other brands of bikes. This special specification for Cervelo is called BBright, which is a press fit type. However, it is unique because the non drive side (left) and drive side (right) offset is different.

Traditional threaded bottom bracket shells have a width of 68 mm, with the bearings supported outboard by the BB cups. Normally, for press fit bottom brackets, the width is wider than threaded type, as the bearings are already included inside the BB shell width. For a comprehensive guide to the various BB specifications, check out this link.

For Cervelo BBright, it is odd because it is a hybrid specification. It is a press fit type, but the drive side is not shifted outwards. Only the non-drive side is shifted outwards by 11 mm, giving a total BB shell width of 79 mm (68 + 11). This supposedly allows sufficient crank and chain ring clearance on the drive side, while allowing the non-drive side frame to be made wider for better frame stiffness.

This idea in itself sounds OK, but it creates an asymmetrical frame and bottom bracket. This is not a problem, but I have heard and read about many bad experiences with BBright bottom brackets, as they creak and squeak quite frequently. This can happen to any press fit bottom bracket design, if the frame and bottom bracket tolerances are not controlled tightly.

One of the best solutions is to use a set of press fit bottom brackets that thread the left and right side together, to prevent looseness and play that will cause creaking. That is why I had to get a threaded BBright bottom bracket that is heavier and more expensive, instead of the normal press fit type.

Wheels Manufacturing makes many types of bottom brackets to fit almost every BB specification, you need to choose the correct one to match your frame and also your crankset.

BBright is based on Press Fit 30 specifications, in terms of diameter. However, the offset of the left and right side is non-standard.

This bottom bracket has a bearing with an inner diameter of 24 mm to fit Shimano crank spindles. BBRIGHT-OUT-1 is what you need for this Cervelo Aspero, for Shimano cranksets.

This is what comes in the box.

The left and right side threads together, to eliminate free play and creaking within the frame.

Sealed bearings with an inner diameter of 24 mm, to match Shimano crank spindles.

Set of seals and spacers. The two seals on the left are compulsory, to be placed on the outside of both sealed bearings. Spacers are optional depending on your frame requirements.

Bearing seal placed on the sealed bearings.

Bottom bracket with seals weigh 143 grams, which is quite a bit heavier than normal press fit bottom brackets. Most of the additional weight is due to the aluminium housing.

Non drive side flange is only 1.5 mm thick.

Drive side cup is about 9 mm wide, which compensates somewhat for the shorter BB shell on the right side.

Cup diameter that fits into the frame shell is just under 46 mm. The dimension on this threaded type press fit BB is slightly smaller than normal true press fit type, as there is no need to be very tight since it will be threaded together anyway.

Normal BB tools will not fit as the serration on the BB cups are bigger than usual.

A new tool is necessary, which has a bigger serration to fit this bottom bracket. I bought it together with the new bottom bracket from Wheels Manufacturing.

This side of the tool with a diameter of 44 mm is the same as Shimano standard.

This side with the larger 48 mm diameter serration is for this new BBright bottom bracket.

New tool is needed to install this new bottom bracket.

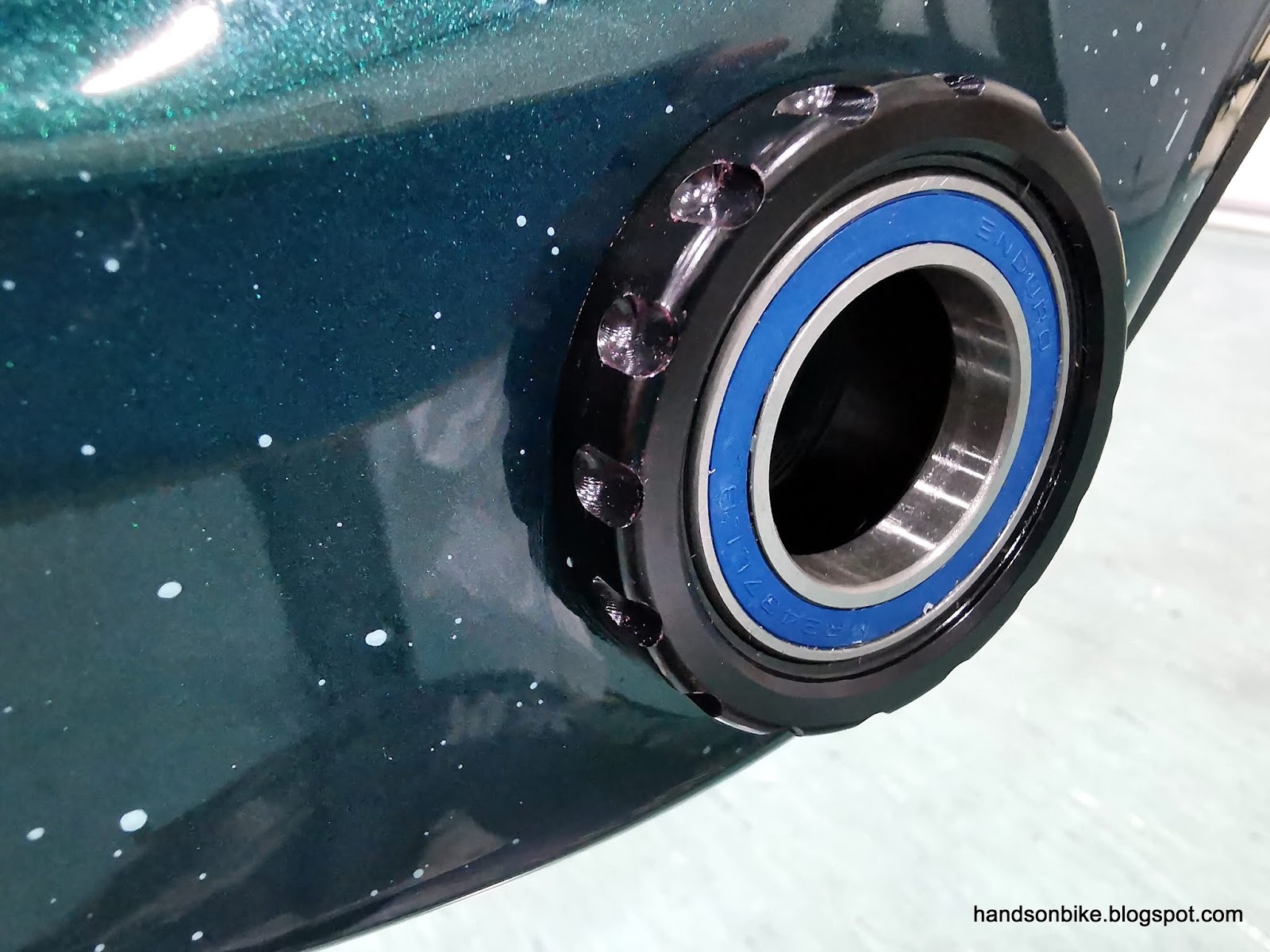

Non drive side cup is tight and need to be pressed into the frame using a press fit tool.

Drive side cup is slightly looser, and can be placed into the frame by hand.

Once the threads in the middle of the bottom bracket contact each other, just rotate the bottom bracket to tighten them together. For my case, the non drive side cup fits tightly with the frame, so there is no need to hold that side. I only needed to use the tool to rotate and tighten the drive side cup. Once the cups are nicely tightened to each other, installation is complete!

Hopefully this bottom bracket will prevent any bottom bracket creaking on the Cervelo Aspero.
